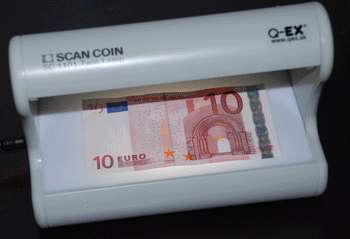

SCAN COIN 1101 / 1102 Twin Lamp

- detector is a combination of an illuminated table with normal light and an ultraviolet lamp.

SC 1101/1102 Twin Lamp is a universal instrument that allows you to take advantage of the possibilities that already exist for checking most banknotes, cheques, ID-cards, passports etc. in an effective way. The device is designed for rapid checking.

Security features that can be detected :

See through registers
Watermarks
Security threads in banknotes or passports
Fluorescent colour printing, e.g. UV images and coloured fibres in paper

Technical Specifications

	SC 1101	SC 1102
Width:	190 mm/7.5"	240 mm/9.4"
Depth:	110 mm/4.4"	110 mm/4.4"
Height:	130 mm/5.1"	130 mm/5.1"
Weight:	0,7 kg/1.5 lbs	0,8 kg/1.7 lbs
Voltage:	110/220 V	110/220 V
Power:	11 W	11 W

Detectors are dedicated to recognize UV protection:

Visual detection of differences UV image (Etalon) versus UV image of "live" banknote/counterfeit

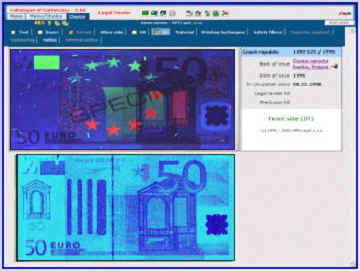

UV image (Etalon) v. UV image of "live" counterfeit

P.S. For exact information to above mentioned security features use:

Catalogue of Currencies; particular UV images + descriptions
Security Features Guide; UV protection
