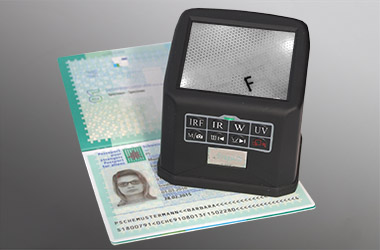

Universal detectors C3 and series C11

Professional detectors with possibility to display the image of inspecting area on its own screen with 10 times magnification.

C11 - detector is improved model of C3 detector.

By simply clicking on button you can take a picture of inspected security features. The images are automatically saved to the detector's internal memory with capacity 2 GB.

Detector could be connected with PC by mini USB and you can copy the images to your PC for next processing.

Basic functions:
  • Detail view
  • White direct light, transmitted light and sidelight
  • UV light
  • IR light
  • Take a picture of inspected security features (detector C11)

Ex works price C3 : 280 EUR
Ex works price C11: 360 EUR

Additional functions:
  • UV C light
  • Coaxial light 3M
  • Anti-Stokes (980 nm)
  • light with wave length 470 nm
C11 detectors for high level authentication of passports, ID cards and banknotes

C11 with additional functions are profesional ID documents detectors for high level authentication of passports, ID cards and other identification documents.

You can find more information about types of C11 detectors in Description

Authentication by using C11 detector:

Checking mode using IR light:

Image fragments made by infrared metameric inks (relative in color, but with different reflecting ability in IR range)

More Show more arrow

Checking mode using UV A and UV C light:

Absence of background luminescence of note paper, luminescence of different parts of notes (marks, fibers, pattern fragments) due to the presence of special luminescent inks

Checking mode using white transmitted light:

Watermarks, security threads, safety fibers, corresponding images and marks as well as their relative position on the banknotes front and back sides, micro-perforation, micro-perforation

Checking mode using white reflected light:

Printing techniques and its flaws, presence of micro-lettering patterns and its flaws, possible erasures

Checking mode using side incident light:

Possible erasures, printing techniques, presence of MVC security features, presence of security features with latent effects


Hide  Show less arrow
